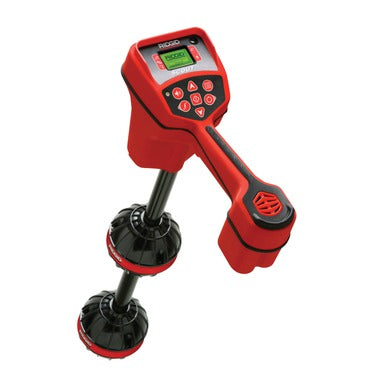

The NaviTrack Scout locator is designed to solve the most demanding remote transmitter

(sonde) locates using multi-directional locating technology.

Easier Locates

The NaviTrack Scout multi-directional antenna technology sees the entire signal all of the

time. Simply maximize the signal strength and you have found the target. No nulls or false

peaks to complicate the locate.

Accuracy

This locator verifies the locate position using a micro-mapping display to mark distinctive

poles in front of and behind the target, insuring an accurate locate.

Automatic Depth

Depth is automatically calculated and displayed when over the target.

Specifications

Weight......................................3 lbs. (1,4 kg).

Power Source ...........................4 C-Cell batteries.

Battery Life ...............................Approximately 24 hours.

Standard Frequencies

Sonde........................................16 Hz, 512 Hz, 640 Hz and 33 kHz.

Line Trace .................................512 Hz, 8 kHz and 33 kHz.

Passive AC Line Trace ..............60 Hz, 50 Hz.
