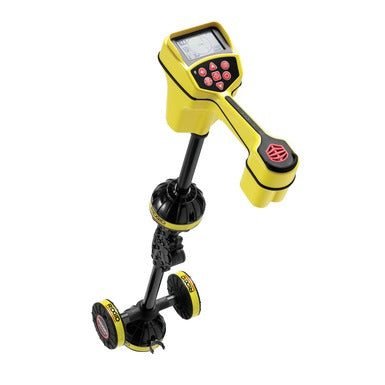

For a lightweight yet rugged receiver that provides all the information needed for faster, more

accurate locates.

Easy to Use

Target line and guidance arrows quickly identify distortion.

Proximity signal and signal strength help work through difficult locates.

Can trace any frequency from 10 Hz to 35,000 Hz.

SR-20 Locator Specifications

Active Line Trace Frequencies* .....................128 Hz, 1 kHz, 8 kHz, 33 kHz.

Passive Power Trace ......................................50 Hz, 60 Hz, <4 kHz Broadband.

Passive Radio Trace .......................................4 kHz - 15 kHz, 15 kHz - 36 kHz.

Sonde Frequencies.......................................... 16 Hz, 512 Hz, 640 Hz, 850 Hz,

8 kHz, 16 kHz, 33 kHz.

Power Source.................................................4 C-Cell Batteries.

Battery Life.....................................................Approximately 16 Hours.

Weight............................................................3.5 lbs. (1,6 kg).

Meets FCC Class A and EN 55022 Class A requirements.

* 30 user definable frequencies can be set from 10 Hz to 35,000 Hz.
