For the fastest, easiest, most versatile receiver available.

Versatility

Can trace any frequency from 10 Hz to 93,000 Hz.

Can trace energized lines and sondes (active beacons) simultaneously.

Has all the ease of use and accuracy of the SR-20 locator but with ALL locatable frequencies.

Choose the SR-60 locator for fast confident locates even under tough locate conditions (poor

conductors, poor soil conditions, poor grounding, etc.).

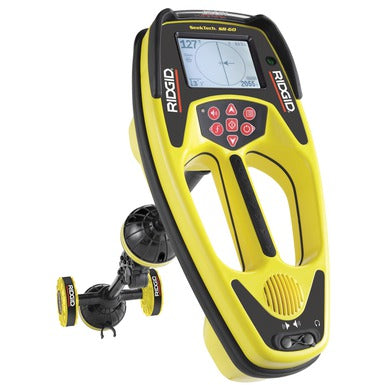

SR-60 Locator Specifications

Active Line Trace Frequencies** ......................128 Hz, 1 kHz, 8 kHz, 33 kHz,

51 kHz, 93 kHz.

Passive Power Trace ......................................50 Hz, 60 Hz, <4 kHz Broadband.

Passive Radio Trace .......................................4 kHz - 15 kHz, 15 kHz - 36 kHz.

Sonde Frequencies**.....................................16 Hz, 512 Hz, 640 Hz, 850 Hz,

8 kHZ, 16 kHZ, 33 kHZ.

Power Source.................................................4 C-Cell Batteries.

Battery Life.....................................................Approximately 16 Hours.

Weight............................................................5.1 lbs. (2,3 kg).

Meets FCC Class A and EN 55022 Class A requirements.

** 30 user definable frequencies can be set from 10 Hz to 93,000 Hz
