The RIDGID Model 1224 is the industry standard 4" Threading Machine. Thousands of satisfied customers around the world give testimony of its dependability.

Ridgid 26092 Features:

The Model 1224 threads a wide range of pipe including black, galvanized and plastic-coated pipe, together with stainless steel, IMC and heavy-wall conduit, as well as rod up to 30 Rockwell C.
An induction motor helps minimize noise and keep sound levels within limits set by OSHA.
A special capacitor-start / capacitor-run motor allows the 1224 to thread a full range of material where voltage drop is experienced.
1/4"-2" Universal Die Head; 2 1/2"-4" receding die head allows cutting of tapered or straight NPT/NPSM or BSPT/BSPP threads.
Constant and proper lubrication of dies and workpiece with through-head oiling.

Ridgid 26092 Specifications:

Pipe Capacity: 1/4"-4" (6mm-100mm) 4"-6" (100mm-150mm) with 161 Geared Threader.
Bolt Capacity: 1/4"-2" (6mm-50mm).
Motor: 1 1/2 HP, single-phase, 60 Hz, induction type.
Motor Control: Reverse/Off/Forward, heavy-duty rotary-type and integral foot switch.
Spindle Speed: 36/12 RPM.
Gear Box: Two-speed gear box 3:1 ratio.
Chuck: Hammer-type with replaceable rocker-action jaw inserts.
Rear Centering Device: Cam action.
Cutter: Model 764 full-floating, self-centering 1/4"-4" with F-229 cutter wheel.
Reamer: Model 744, 1/4"-4" blade-type.
Pump: Self-priming, gerotor-type, automatic-reversing, constant-flow.

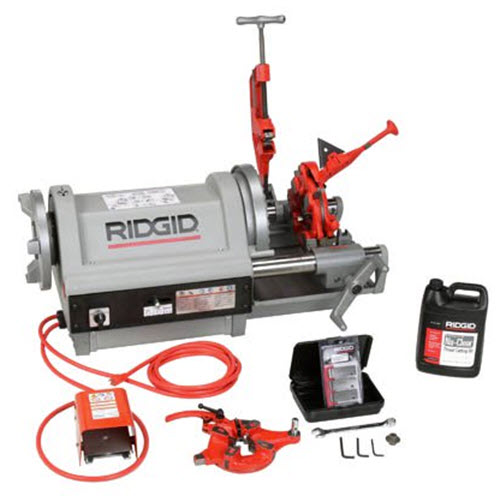

Ridgid 26092 Includes:

(1) No. 714 (914) 2 1/2"- 4" receding self-opening die head.
(1) No. 711 (911) 1/4"- 2" universal self-opening die head.
(1) set 1/2"- 3/4" universal alloy dies.
(1) set 1" - 2" universal alloy dies.
(1) set 2 1/2"- 4" 1224 high-speed dies.
(1) gallon Nu-Clear oil.
(3) hex keys.
(1) spare F-229 cutter wheel.
(1) 3/4" combination wrench.
(1) No. 744 reamer.
(1) No. 764 cutter.
(Please note - tool stand and plastic box not included)
