1 ½" to 4 / 5" (40 - 100 / 125 mm)* lines up to 100' (30 m) Passes 90 ° bends in most 50 mm lines

* 4” (100 mm) when used with a microEXPLORER or micro CA-300. 5” (125 mm) when used with a SeeSnake monitor.

SeeSnake microReel video inspection system provides small size and maneuverability for small

diameter and tight-turn radius inspections.

Lightweight and compact design is one-half the size of popular inspection systems, easily stowed

in a truck and carried onto the jobsite.

Multi-monitor compatibility with existing SeeSnake monitors, or the CA-300 digital inspection camera.

Durable and reliable construction with hardened stainless steel camera head spring assembly for a

long service life as well as long lasting high-intensity lights for exceptional viewing.

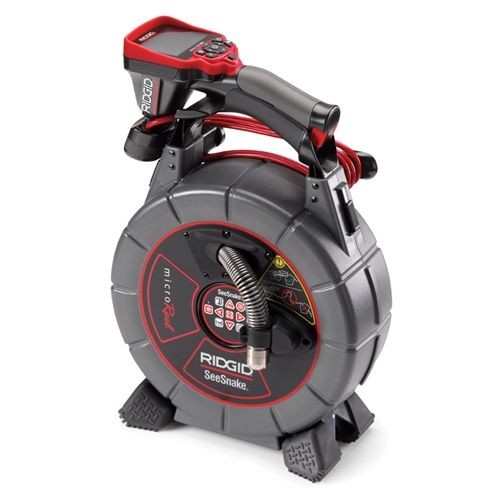

SeeSnake microReel

L100 & L100C Systems

Features

Stiffer push cable than microDrain to enable line inspections up to 100' (30 m).

Specifications

-Camera Head..............0.98" (25 mm).

-Cable Length ..............100' (30 m).

-Cable Diameter ..........0.27" (6,7 mm).

-Line Capacity..............1 ½" to 4 / 5" (40 - 100 / 125 mm).

-Weight........................10.3 lbs. (4,7 kg).

-Length.........................13.25" (33,7 cm).

-Width..........................6.6" (16,8 cm).

-Height.........................14.2" (36,1 cm).

-Resolution ..................510 x 496.

-Ball Guide...................2 Included.

-Sonde .........................512 Hz.

-Counter.......................Optional.
