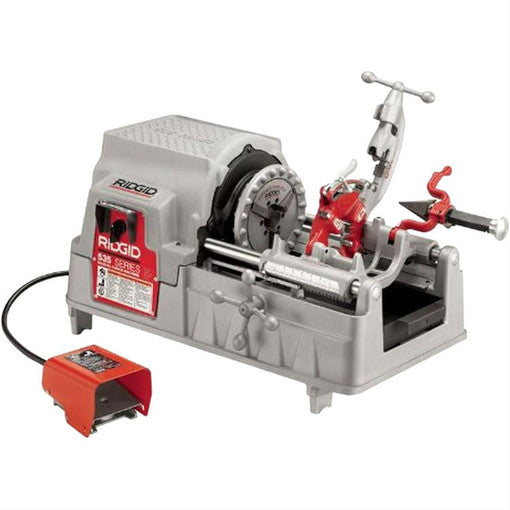

RIDGID 93287 MODEL 535 115V THREADING MACHINE, 1/2" - 2" NPT
Regular price
$7,258.60
Sale price
$7,258.60
Regular price
$7,984.46
Save 9%
RIDGID 93287 MODEL 535 115V THREADING MACHINE, 1/2" - 2" NPT
Regular price
$7,258.60
Sale price
$7,258.60
Regular price
$7,984.46
Product description
Details
Product Features
Included
More Information
Shipping & Return
Details
Ridgid 93287 Specifications:
Pipe Capacity: 1/8"-2" (3mm-50mm)2 1/2"-4" (62mm-100mm),4"-6" (100mm-150mm) with 141 and 161 geared threaders.
Bolt Capacity: 1/4"-2" (6mm-50mm).
Motor: 1/2 HP, single-phase, 115V, 25-60 Hz, 15 amp reversible universal motor.
Spindle Speed: 36 RPM standard (no load), 54 RPM model also available.
Reamer: 5-flute cone, RH, 1/8"-2" (3mm-50mm).
Oil Pump: Self-priming gerotor oil pump.
RH/LH combination reamer available.
Ridgid 93287 Includes:
(1) No. 811A universal, quick-opening die head.
(1) No. 341 reamer.
(1) No. 820 cutter.
(1) set 1/2"-3/4" universal alloy dies.
(1) set 1" - 2" universal alloy dies.
(1) gallon premium oil.
(4) hex wrenches.
(1) spare E-1032 cutter wheel.
Ridgid 93287 Features:
Large 1.75 gallon oil tray.
100% larger chip tray.
Generous top cover for keeping tools and fi ttings handy.
High clearance carriage.
Speed chuck with rocker-action jaws centers and grips work piece instantly.
Can be used with geare
Cutters: self-centering, full-floating.
One Standard. No. 820 Wheel-Type Cutter, pipe capacity 1/8"-2" (3mm-50mm), bolt capacity 1/4"-1" (6mm-25mm).
Switches: FOR/OFF/REV and Integral safety foot switch.
Chuck: Speed Chuck with replaceable rocker-action jaw inserts (3).
Rear Centering Device: Cam-action, turns with chuck.
Pipe Capacity: 1/8"-2" (3mm-50mm)2 1/2"-4" (62mm-100mm),4"-6" (100mm-150mm) with 141 and 161 geared threaders.
Bolt Capacity: 1/4"-2" (6mm-50mm).
Motor: 1/2 HP, single-phase, 115V, 25-60 Hz, 15 amp reversible universal motor.
Spindle Speed: 36 RPM standard (no load), 54 RPM model also available.
Reamer: 5-flute cone, RH, 1/8"-2" (3mm-50mm).
Oil Pump: Self-priming gerotor oil pump.
RH/LH combination reamer available.
Ridgid 93287 Includes:
(1) No. 811A universal, quick-opening die head.
(1) No. 341 reamer.
(1) No. 820 cutter.
(1) set 1/2"-3/4" universal alloy dies.
(1) set 1" - 2" universal alloy dies.
(1) gallon premium oil.
(4) hex wrenches.
(1) spare E-1032 cutter wheel.
Ridgid 93287 Features:
Large 1.75 gallon oil tray.
100% larger chip tray.
Generous top cover for keeping tools and fi ttings handy.
High clearance carriage.
Speed chuck with rocker-action jaws centers and grips work piece instantly.
Can be used with geare
Cutters: self-centering, full-floating.
One Standard. No. 820 Wheel-Type Cutter, pipe capacity 1/8"-2" (3mm-50mm), bolt capacity 1/4"-1" (6mm-25mm).
Switches: FOR/OFF/REV and Integral safety foot switch.
Chuck: Speed Chuck with replaceable rocker-action jaw inserts (3).
Rear Centering Device: Cam-action, turns with chuck.
