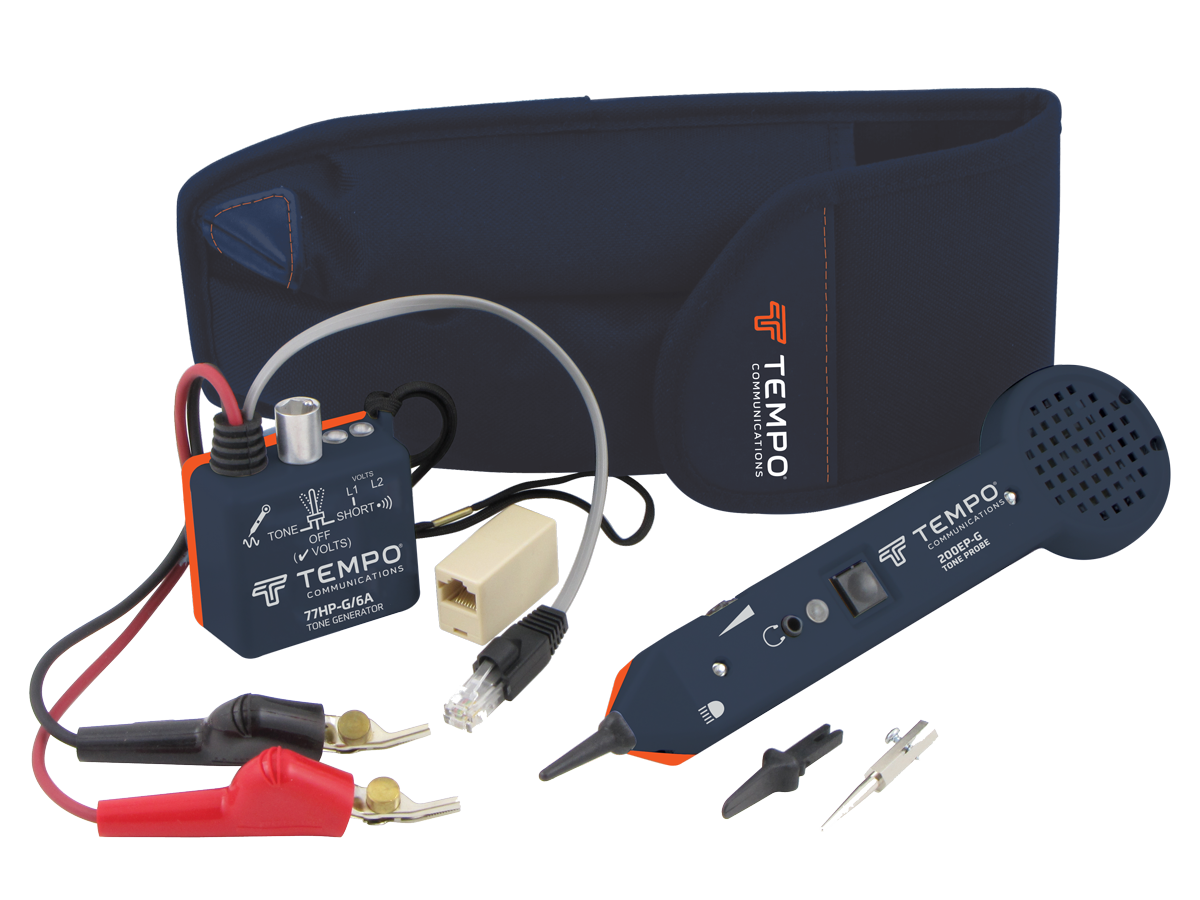

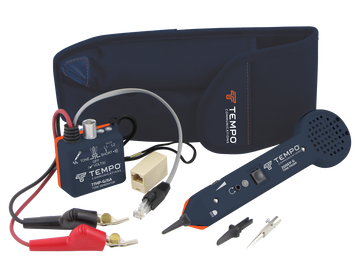

TEMPO (old Greenlee) 701K-G/6A Professional Tone and Probe Tracing Kit, Standard with ABN Test Clips
TEMPO (old Greenlee) 701K-G/6A Professional Tone and Probe Tracing Kit, Standard with ABN Test Clips
FEATURES:
Adjustable Volume Control
Replaceable Tip
LED Signal Indicator
Test Telephone Port
Headset Jack
LED Flashlight
Continuity & Polarity LED
External Warble Select
RJ11 & RJ45 Socket
Lanyard
Short Circuit LED/Beeper
Single/Dual Line Modular LED
Alligator/ABN Connector Clips
SPECIFICATIONS:
5 Digit UPC: 35775
Talk Battery (into 600?): 4.6 VDC
Output Power (into 600?): +10 dBm
Resistive Short Visual Indication: <10 k?
Resistive Short Audio Indication: <200?
Output Frequency (nominal)
Alternating-890/960 Hz, Warbling-Slow: 1.3 Hz/
Fast: 6 Hz
Voltage Protection (into 600?): 150 VDC
Battery: 9 VDC (NEDA 1604, JIS 006P, or IEC 6LF61)
Battery Life: >50 hours
Height: 57 mm (2.25â€)
Width: 64 mm (2.5â€)
Depth: 32 mm (1.25â€)
Weight (max): 128 g (4.5 oz.)
Operating Temperature: 0 ° C to 50 ° C (32 ° F to 122 ° F)
Storage Temperature: -50 ° C to 75 ° C (-58 ° F to 167 ° F)
