• (1) Test Set

Features:

• LCD for easy dialing, programming, caller ID, voltage, current, ringing, and DTMF measurements
• Safe over voltage and over current protection
• Intercom for “dead-pair” talking
• SmartIntercom between Tele-Mate Pros (including PE830); allows “ringing” the far end
• Tone generator for pair identification
• Luminescent (glow-in-the-dark) keypad
• DSL line filter
• Super Impedance Amplifier to monitor lines without disrupting traffic
• Tone and Pulse dialing for old and new phone lines with Pause and Flash (TBR)
• User options allow USA or ETSI telephony with individual options available
• RJ11 socket for easy cord changes
• Ten last number redial & ten number speed dial memories
• Headset (included) for hands free operation, with loudspeaker option
• Volume control & mute
• Requires just two AA cells, readily available and low cost

Specifications:

• Application: Test Telephone with High-impedance monitor, LCD, SmartIntercom, Calling Line ID, Pair tracing toner, DTMF decoding, Multiple last-number redial and ten speed-dial memories
• DC Voltage: TNV-3 working, 500 V peak, 1500 V TRANSIENT
• Dimensions: 9.25 (235 MM) Length X 2.5 (64 MM) Width X 3.25 (83 MM) Height
• Leakage: > 10 M ohms
• Loop Current: < 10 mA < I < 125 mA
• Replacement Part: Replaces PE830, Spares CS-01,CS-02, CS-03, CS-04, CS-05, CS-06, CS-07, HS-001
• Standard: TIA/EIA-470-B and ETSI
• Storage/Operating Temperature: -10 C to +70 C, <95% humiditystorage, 0 C to +50 C, <90 % humidity (no condensation) operating
• Voltage Measurement: 110 V dc max

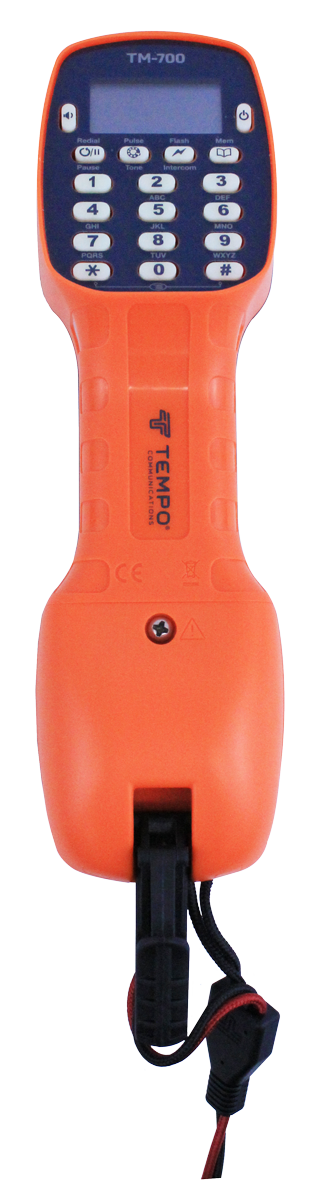

The TM-700 helps technicians install, service, and maintain voice services with ease. DSL compatible in both Monitor and Talk modes, the TM-700’s LCD screen makes reading polarity, voltage, current, and ringing frequencies easier than ever, and clearly shows speed dials and recent numbers for faster access.The TM-700 features over-voltage and over-current detection for safer operation and also features an intercom mode, a built in toner for pair tracing, and DTMF detection and measurement for enhanced productivity. Use the built in loudspeaker or with a headset (included) for easy hands free operation.
